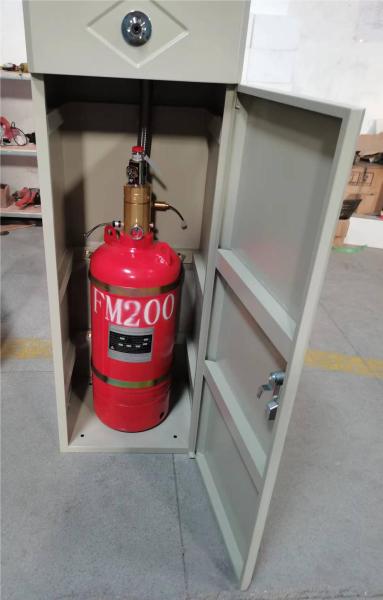

Cabinet FM200 Gas System Without Residue For Telecommunication Room
FM200 (Heptafluoropropane, HFC-227ea) automatic fire extinguishing system is a gas fire, automatic control and fire detection is one of the modern intelligent automatic fire extinguishing system.
FM200 gas fire extinguishing system can be combined with physical and chemical reaction process rapidly and effectively eliminate heat, prevent the happening of the fire, the physical properties of FM200 performance in its molecule vaporizing stage can rapid cooling flame temperature; And the release of free radicals in the process of chemical reaction, will eventually stop burning a chain reaction.
Parameters
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr,
120Ltr,150Ltr,180Ltr |
| 2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | ≤0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Cabinet Size
| Specification | Size(mm) | Volume(cbm) | Net weight (kg) |
| GQQ40/2.5 | 500×450×1450 | 0.326 | 33 |
| GQQ70/2.5 | 500×450×1450 | 0.326 | 43-50 |
| GQQ90/2.5 | 500×450×1650 | 0.371 | 43-50(46) |
| GQQ100/2.5 | 500×450×1650 | 0.371 | 55-64(54) |
| GQQ120/2.5 | 550×550×1900 | 0.575 | 60-73(60) |
| GQQ150/2.5 | 550×550×1900 | 0.575 | 80 |
| GQQ180/2.5 | 600×550×2150 | 0.71 | 80 |
Compositions:
The cabinet type fm200 fire suppression system is very easy to install because of a few components. A system is usually divided into two parts, one is the fire extinguishing device part, and the other is the electrical elements part. Because there is a sole part for introducing the electrical part, so the following words are only for talking about the fire extinguishing device part.
Working principle
Here is the illustration of working principle to whole system
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Competitive Advantage
Cabinet fm200 system: management of big zone, simple integration, direct spraying effect in protection zone, efficient fire suppression.
1. Effective firefighting in relatively small region
2. Simple assembly of device without pipeline
No extra space to store device
Packages
We pack products with first polyfoam and then the wooden cases. Once products are too big or customers require a pallet for products, we will make products a pallet. The following pictures are the common packing of products:
