UL Automatic fire suppression system in the data center without pollution of FM200

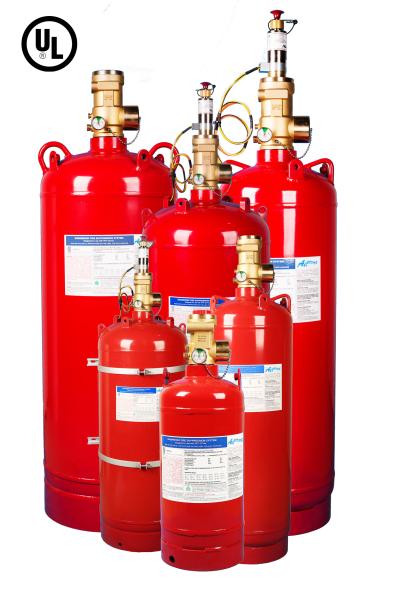

Description of UL FM200 Fire Suppression System
The HFC-227EA automatic fire extinguishing system is an excellent fire extinguishing system because it responds quickly and does not produce any toxic consequences. Its design purpose is to extinguish Class A, B, and C fires. This type of system is very safe and can be discharged around humans without worrying about harmful chemicals in the discharge agent.
Attributes of UL TPED series cylinders
| Material | P355M C: ≤0.14% Mn: ≤1.60% Si: ≤0.50% P: ≤0.025% S: ≤0.010% |
| Working pressure | 42 bar ( 609 psi ) |
| Air tightness test pressure | 63 bar ( 914 psi ) |
| Burst pressure | ≥ 126 bar ( 1827 psi ) |
| Operating temperature range | -20 °C ~ 65 °C |
| Surface Paint | Red polyester powder spraying |
| Certification | TPED |
Features of UL FM200 Fire Suppression System
1. The required concentration is low, which has little visual impact on on-site personnel and reduces personnel risk.
The
2. System has a relatively low usage, which can minimize overvoltage in the protection zone and maintain the structural safety of the protection zone.
3. Low toxicity and relatively safe for personnel.
Short spraying time and fast extinguishing speed are beneficial for reducing fire losses.
As long as the concentration level is maintained, it can effectively prevent reignition.
Application of UL FM200 Fire Suppression System
Fire suppression system HFC-227ea can be used in normal commercial and industrial settings. Typical areas that can be protected by this system include:
- Bank strong room
- Libraries
- Bookstores
- Electronic data processing center
- Telephone switching studio
- Communication center
- Transformer and switchgear room
- Control room
- Test lab
- Inflammable liquid storage room
Packages of UL FM200 Fire Suppression System

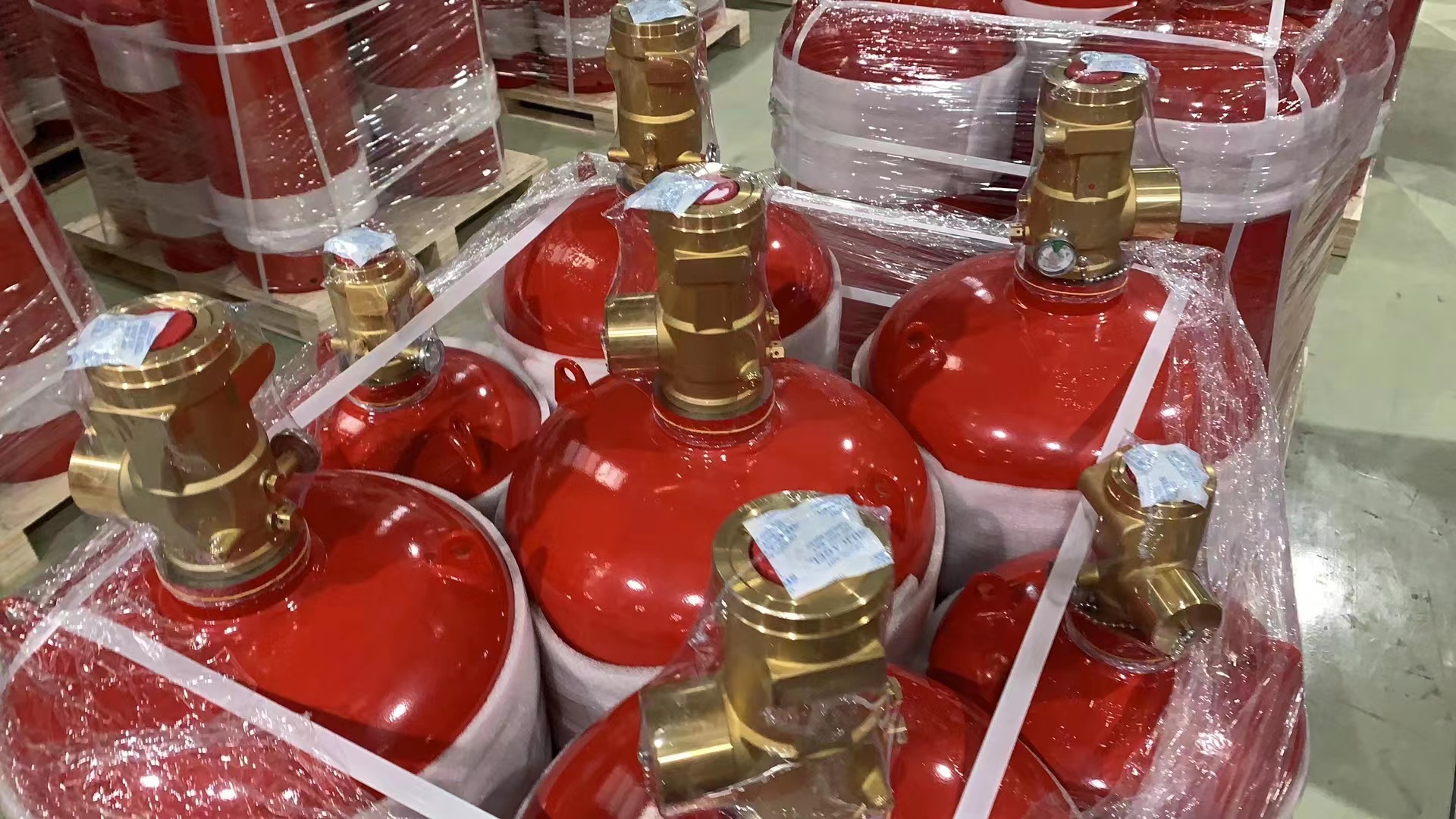

We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Product Tags:
|
|
